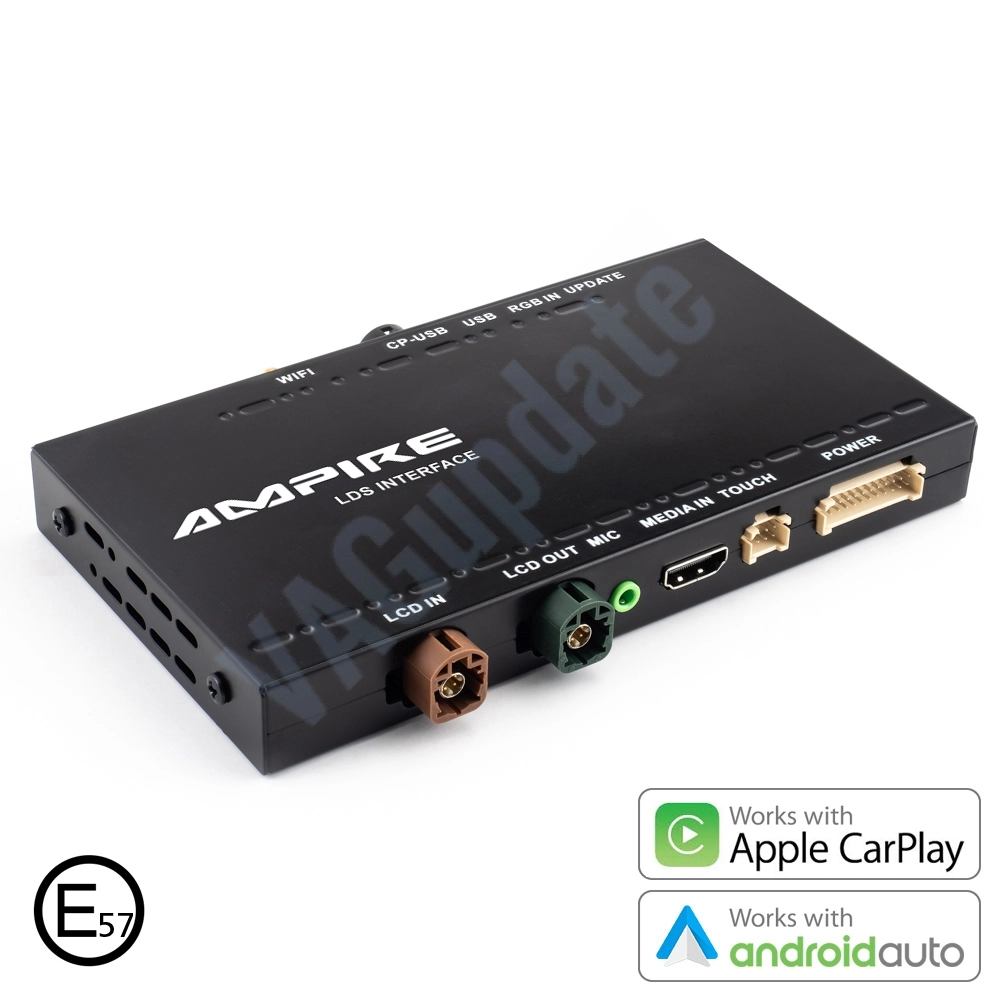

Product information "AMPIRE Smartphone-Integration for Seat, Skoda, VW"

Plug&Play smartphone interface with full integration into the car's multimedia system. Check the compatibility list to see if we have a solution available for your car.

The image is displayed on the full factory monitor and the sound is fed in via the audio AUX input of your factory multimedia system. Before ordering, check whether your factory multimedia system also has an audio AUX input or can be retrofitted.

Our smartphone interface is compatible with Apple CarPlay® and Android Auto, making it a smarter and safer way to use your smartphone in the car. Everything is operated via the vehicle's own buttons and control systems. Of course, you can also use Siri and OK Google voice control via the included microphone. Everything you want to do with your smartphone while driving can be done directly from the car's display with Apple CarPlay® and Android Auto. You can easily get directions, send and receive messages. While navigating, you can listen to your favourite music via Spotify or your favourite radio station via a radio app - and still concentrate on the road.Simply connect your smartphone to the USB socket in our system

Even more conveniently, you can connect your Apple iPhone wirelessly via WiFi. Wireless Apple CarPlay® is possible from the Apple iPhone 5.

FEATURES

• Interface for retrofitting Apple CarPlay® and for Android Auto

• Operation via OEM buttons/touchpad from vehicle
• Wireless Apple CarPlay® via supplied WIFI antenna from iPhone 5 onwards
• Wired Apple CarPlay® via USB (switch off WLAN on iPhone)
• Wired Android Android via USB
• Android Mirrorlink function (mirroring the smartphone display)
• USB input for multimedia playback (e.g. USB stick)
• Video playback with Apple iOS only via USB cable
• Up to 1080p HD resolution for multimedia playback
• Supports RMVB, MOV, MKV, MP4, AVI, RM
• Pairing via Bluetooth only necessary during initial installation
• Integrated audio DSP with equaliser for audio output
• Analoger Audio-Ausgang mit 3 Volt Ausgangsspannung für die Tonwiedergabe (Audio AUX)
• Supports left- and right-hand drive vehicles
• Software update possible via micro USB input (adapter included)
• "Apple Siri" and "OK Google" voice control via supplied microphone (no telephony)

APPS

• GPS navigation with Google Maps, Waze and Apple Maps, etc.

• Music playback with Spotify, Apple Music, Amazon Prime, etc.

CAMERA FUNCTIONS

• Input for front camera (composite video)

• Rear camera input (composite video)
• Support for rear cross traffic alert (PDC)
• Supports moving guidance lines
• Supports 360° camera systems
• 12 volt output for front camera power supply
• 12 volt output for rear camera power supply

ACCESSORIES

• We will send you an adapter from MICRO-USB to USB for possible software updates from the interface.


VEHICLE COMPATIBILITY

Before purchasing and installing the product, check that it is compatible with your car type, year of manufacture and entertainment system. Your entertainment system must have an audio AUX input for sound playback. Incompatibility may result in damage.

Suitable for the following vehicles:

• Seat Altea/Altea XL with OEM Radio: RNS 510, 03/2004 - 06/2015
• Seat Leon 1P with OEM Radio: RNS 510, 07/2005 -10/2012
• Seat Toledo 5P with OEM Radio: RNS 510, 02/2004 - 05/2009
• Skoda Fabia II with OEM Radio: RNS 510/Columbus, 03/2007 - 06/2014
• Skoda Octavia 1Z with OEM Radio:  RNS 510/Columbus, 01/2009 - 12/2012
• Skoda Rapid with OEM Radio:  RNS 510 / Columbus, 10/2012 -02/2019
• Skoda Roomster with OEM Radio:  RNS 510 / Columbus, 05/2006 - 04/2015
• Skoda Superb 3T with OEM Radio: RNS 510 / Columbus, 06/2008 - 06/2015
• Skoda Yeti 5L with OEM Radio: RNS 510 / Columbus, 08/2009 - 07/2017
• VW Golf 6 with OEM Radio: RNS 510, 10/2008 - 10/2012
• VW Passat B7 with OEM Radio: RNS 510, 10/2010 - 02/2015
• VW Phaeton (GP3 / GP4) with OEM Radio: RNS 810, 04/2010 - 03/2016
• VW Scirocco 137 with OEM Radio: RNS 510, 08/2008 - 03/2014
• VW T5 7E with OEM Radio: RNS 510, 10/2009 - 07/2015
• VW Touran 1T3 with OEM Radio: RNS 510, 08/2010 - 04/2015

SMARTPHONE COMPATIBILITY

• Before purchasing and installing, check that the product is compatible with your smartphone.

• Apple iOS: iPhone 5 and higher
• Google Android: Android 5.0 (Lillipop) better Android 6.0 (Marshmallow) and higher.

TECHNICAL DATA

• Charging current of the USB port: 1100mA

• Interface dimensions Interface: 166x89x27mm

APPROVALS

• E-type of approval number E57*10R06/00*0081

• E-type of approval number E57*COP*0279

IMPORTANT PRODUCT INFORMATION

The MEDIA IN socket on the body is not an HDMI input for playback from external HDMI sources. This socket is required for add-on modules on some vehicle types. This product is button controlled only and does not support touch screen or gesture control.

This retrofit does not serve as a hands-free device

INSTALLATIONS NOTE

This product is used in vehicles with 12V battery. Please do not install in vehicles with any other voltage. Never extend the HSD signal wires. This product is made of high precision parts and should not be subjected to strong impact. Never open the housing. To protect driving safety and avoid traffic law violations, never operate the product while driving. The optional reversing cameras are only visible when manoeuvring. In addition, always pay attention to your surroundings and never rely on the camera alone. All installation steps should only be carried out by a trained professional. During installation, the ignition must be switched off and the product must not be connected to power until the wiring is complete. NEVER plug or unplug the cables while the power is on to avoid damaging the monitor or the product. Route the cables so that they do not come into contact with metal edges. Doing so may damage the wiring, resulting in fire. Avoid any contact with hot surfaces when wiring the main unit. High temperatures can damage the wiring and cause short circuits, arcing and fires. Please DO NOT install the product in a humid environment to avoid electric shock, damage and fire caused by a short circuit. Upon receipt of the product, please check that all components are in the packaging. If anything is missing, inform the supplier / manufacturer. Start the engine before loading, check the interface if the function is displayed, check the key if the vehicle interface is working correctly. Please give the feedback to the supplier / manufacturer if you have any questions. Please make sure that you handle the disassembled vehicle parts carefully during installation and avoid scratches on the instrument panel. Unused connectors must be insulated to avoid a short circuit. The cable connections should be well plugged in. Avoid interference with control components such as the steering wheel, accelerator and brake pedals.

LEGAL NOTICE

Apple and the Apple logo are trademarks of Apple Inc. registered in the U.S. and other countries. Android is a trademark of Google LLC. The Bluetooth® word mark and logos are registered trademarks and are owned by Bluetooth SIG, Inc. Third party products and brand names may be registered trademarks of their respective owners.

Product type: Complete kit

Product group: Infotaiment und Multimedia

Weight (in kg): 1.2

Installation time (in h): 3

EAN: 4260052639511
